Process
Bottle feeding→star plate clamping bottle→batch number printing→fixed point labeling→detecting & rejection→Finished product→Next procedure

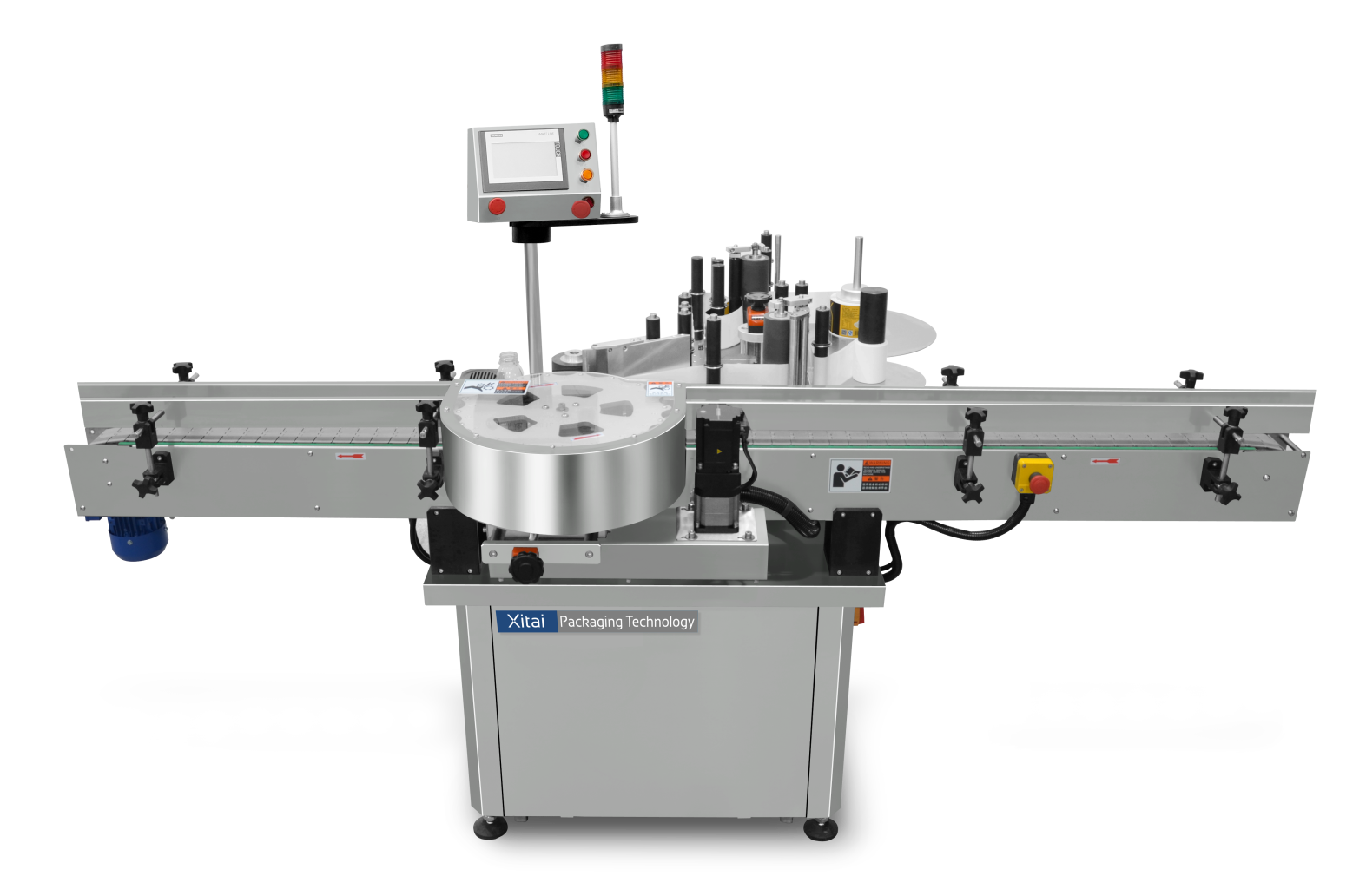

Equipment Introduction
1.Wheel type label rolling parts will press label evenly on bottle body, to stick labels more firmly.
2.Touch screen HMI, easy for operation. With multi recipe memory and call-out function for different bottle sizes.
3.Option: detection and rejection of missing label, missing printing etc, more convenient for product online detecting and ensures product quality.
4.Option: turntable available to feed containers automatically.
5.Customized star plate bottle clamper, 3 point positioning structure, labeling position error less than 0.5mm.
Equipment Parameter
Machine size： | 2400（L）*1400（W）*1500（H）mm |
Voltage： | AC220V 50/60HZ |
Power: | 2.5KW |
Labeling speed： | 0-200pcs/min |
Labeling accuracy： | ±0.5mm |
Air pressure: | 0.5Mpa |
Bottle range: | Body diameter 30-100mm |
Labeling Range ： | Length25-360mm |
Total weight： | 280kg |
