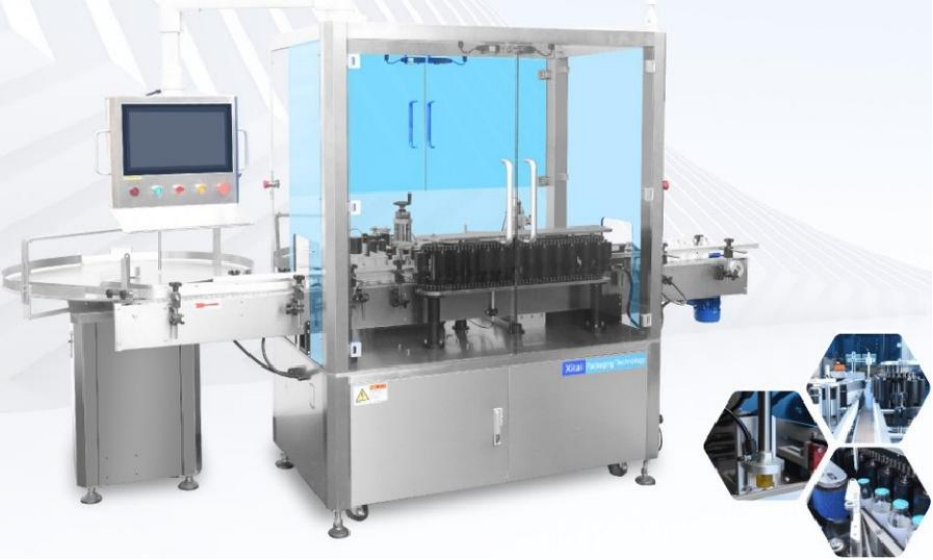

CL8020 Vertical Roll Labeling Machine

Process Flow

Rotary feeder → Screw bottle dispenser → Roller chain bottle holder → Label printing → Three-point labeling → Inspection and rejection → Transfer the material into a container → Collect it neatly → Send it to the next processing step

Functional Characteristics

1.The screw bottle分け mechanism ensures stable feeding and easy operation.

2.For the optical emission detection system, when material supply is insufficient, the machine automatically reduces operation speed to slow labeling mode; upon replenishment of materials, it automatically accelerates.

3.The screw bottle分け mechanism ensures uniform spacing between each bottle, overcoming the drawback of the conventional rotary bottle分け mechanism being prone to bottle breakage, making it particularly suitable for large-scale production of water-based injections and oral solutions.

4.European imported drive motors offer reliable quality and exceptional durability.

5.The labeling roller chain is synchronized with the screw drive, ensuring stable and durable performance. 6.An extensive label supply system features a specially designed 420-mm label tray optimized for high-speed labeling, doubling the supply capacity, reducing label replacement frequency, significantly lowering employee workload, and enhancing production efficiency.

7.The two-stage labeling mechanism ensures synchronized tension across all labels, enabling more precise and stable labeling and printing operations while preventing label detachment.Fully supports high-speed labeling and printing, ensuring precise print positions without ghosting or misalignment.phenomenon 。 8.The robust and durable base along with all components employ a standardized modular design, enabling easy part replacement to meet labeling requirements for various bottle types.

9.The chassis is constructed from SUS304 stainless steel and T6 aluminum alloy, ensuring permanent rust resistance and full compliance with GMP, FDA, CSA, SGS, and EU standards.

10.The device is very easy to adjust, with digital display scales on all settings.

11.A wheel-mounted rolling mechanism ensures more secure label attachment.

12.Tag synchronization positioning mechanism; tag positioning error ±0.5 mm.

13.Multiple emergency stop switches can be installed at appropriate locations on the production line to provide additional emergency shutdown buttons, enhancing operational safety and ensuring smooth production operations.

14.The distance and length of the signal output are automatically calculated by the photoelectric sensor in conjunction with a microcomputer, eliminating the need to adjust the sensor position. Any tag length can be modified directly on the human-machine interface for convenient use.

15.With 50 memory settings, replacing bottles of different sizes requires no additional adjustments—just activate them directly for effortless and time-saving operation.

16.Inspect defective products such as those with missing batch numbers, unclear printing, misalignment, or missing labels, and remove them using a negative-pressure suction mechanism.Ensure that all products discharged are qualified.
