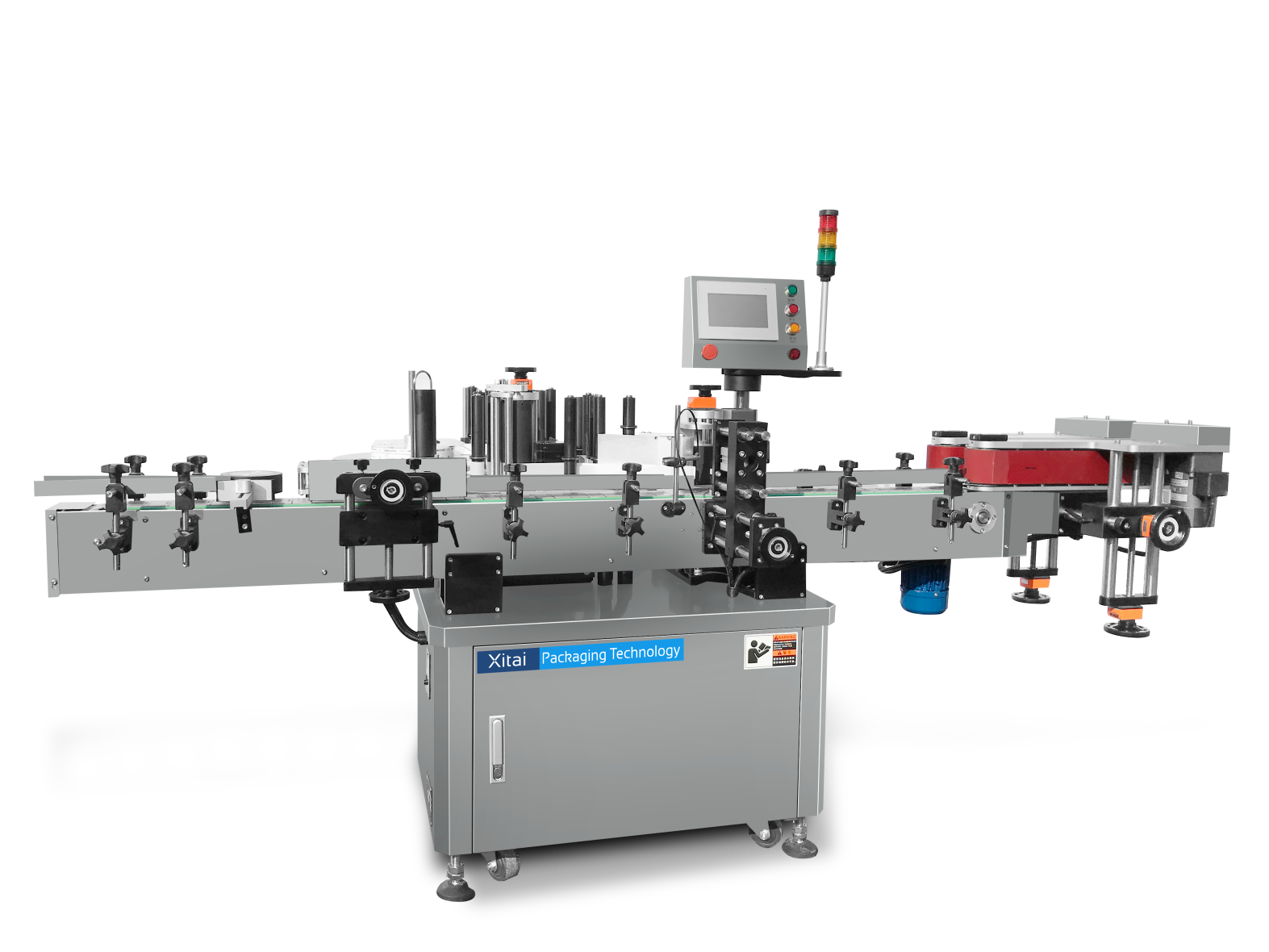

CL8000 Round Bottle Fixed Point Labeling Machine

Basic process

Bottle feeding→star plate clamping bottle→batch number printing→fixed point labeling→on line detecting & rejection→Finished product→Next procedure

Equipment Introduction

1.With three steps label feeding structure: label pulling, releasing, and backing paper collection, the machine is able to print and label easily, high speed, high accuracy, and no label break.
2.Label can be sticked to any required position of bottles.
3.With recipe function (setting parameter of bottle body diameter, length etc.). when changing different sizes, no need to set parameter, the operator can call out memories and apply directly.
4.Customized bottle clamper, 3 point positioning structure. Labels are sticked stable and accurate, position error less than ≤0.5mm.
5.Turntable available to feed containers automatically.

6.Option: label on back and front at given position at same time

Equipment Parameter
