Basic Process
Bottle feeding→bottle separating→printing & labeling→online detecting & rejection→finished product →next procedure

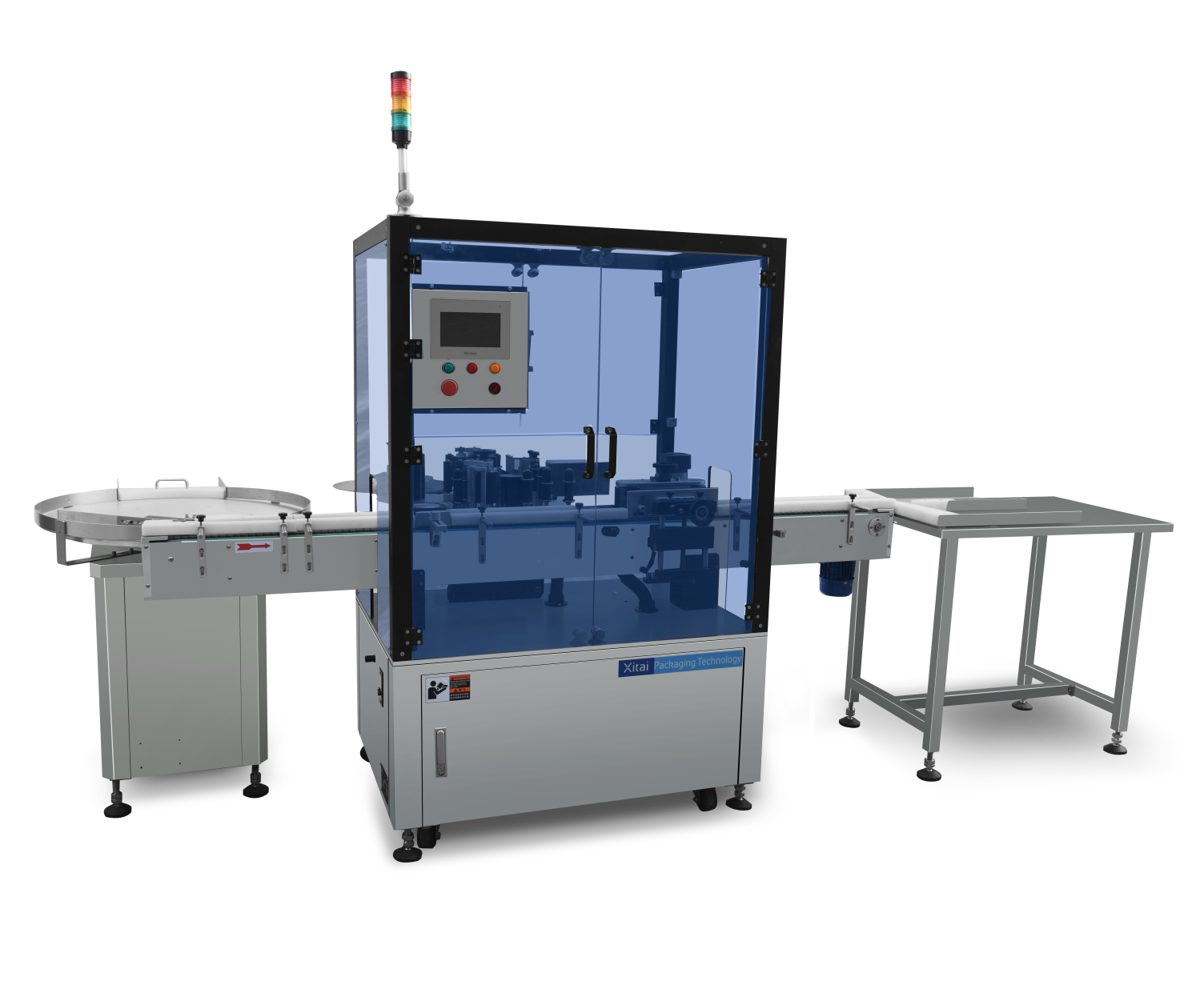

Equipment Introduction
1.With three steps label feeding structure: label pulling, releasing, and backing paper collection, the machine is able to print and label easily, high speed, high accuracy, and no label break.
2.Customized auger seperator to distribute bottles in same distance in high speed
3.Wheel type label rolling parts will press label evenly on bottle body, to stick labels more firmly.
4.Touch screen HMI, easy for operation. With Multiple recipe function for different vial sizes, easy for operation.
5.Option: detection and rejection of missing label, missing printing etc, more convenient for product online detecting and ensures product quality.
6.Option: turntable available to feed containers automatically.
Equipment Parameter
Machine size： | 2650mm(L)×1300mm(W)×2000mm(H)（if any change, please refer to the actual product） |
Voltage： | AC220V 50/60HZ |
Power： | 2KW |
Labeling Speed： | 0-400bottle/min |
Labeling Accuracy： | ±1mm |
Air pressure： | 0.5Mpa |
Suitable bottle range: | Body diameter 10-120mm |
Label Range： | Length 25-300mm |
Total weight： | 350kg |
