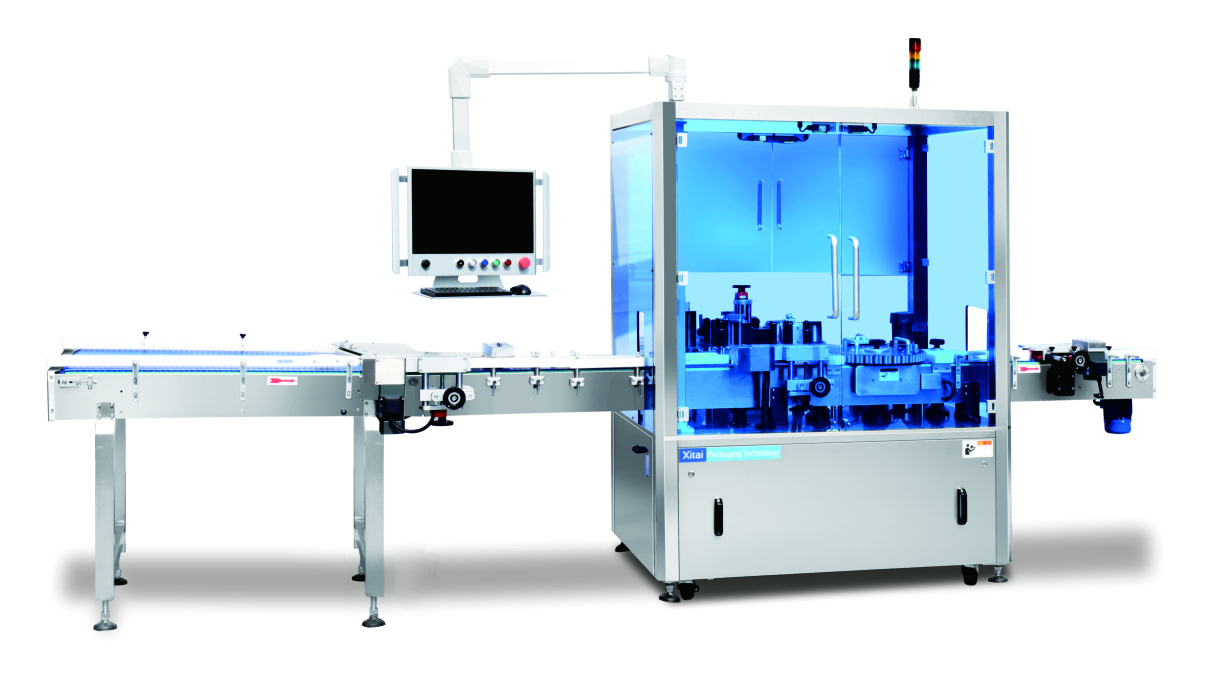

CL8080 Vertical rotary labeling machine

Basic process
Feeding→Screw separation→ Star disc feeding→ Batch number printing →Detection & rejection→finished product→ Bottle nipping for discharge→ Next process

Equipment Introduction
1.Customized vertical-to horizontal bottle converter, make sure bottles are feed stable and high speed. Large buffering area, easy adjust speed, convenient to integrate in an automatic packing line.
2.To make sure high speed and accuracy labeling, we use three steps labeling feeding strucutre: individual motor for label roll pulling, lable releasing and back paper collection. Consistant tension on label releasing part. No label break.
3.Touch screen HMI, easy for operation. With multi recipe memory and call-out function for different bottle sizes.
4.The main star disc system is driven by servo, fast and accurate, no broken and jammed bottles. With stop positioning function, Anti - double label, wrinkle lablel , to ensure the high speed and stable operation of the equipment.
5.Wheel type label rolling parts will press label evenly on bottle body, to stick labels more firmly. Synchronous positioning system make sure label error is less than 0.5mm
6.The specification parts adopt the positioning quick disassembly design, and cooperate with the intelligent operating system. The specification replacement can be completed within 15 minutes.
7.Multi emergency stop button to ensure safety production.
8.Production records can be printed or exported, optional electronic signature, audit trail, connect EMS system and other functions, To facilitate the systematic management of production.
9.Option: automatic tray loading for automatic packaging.

Equipment parameter
