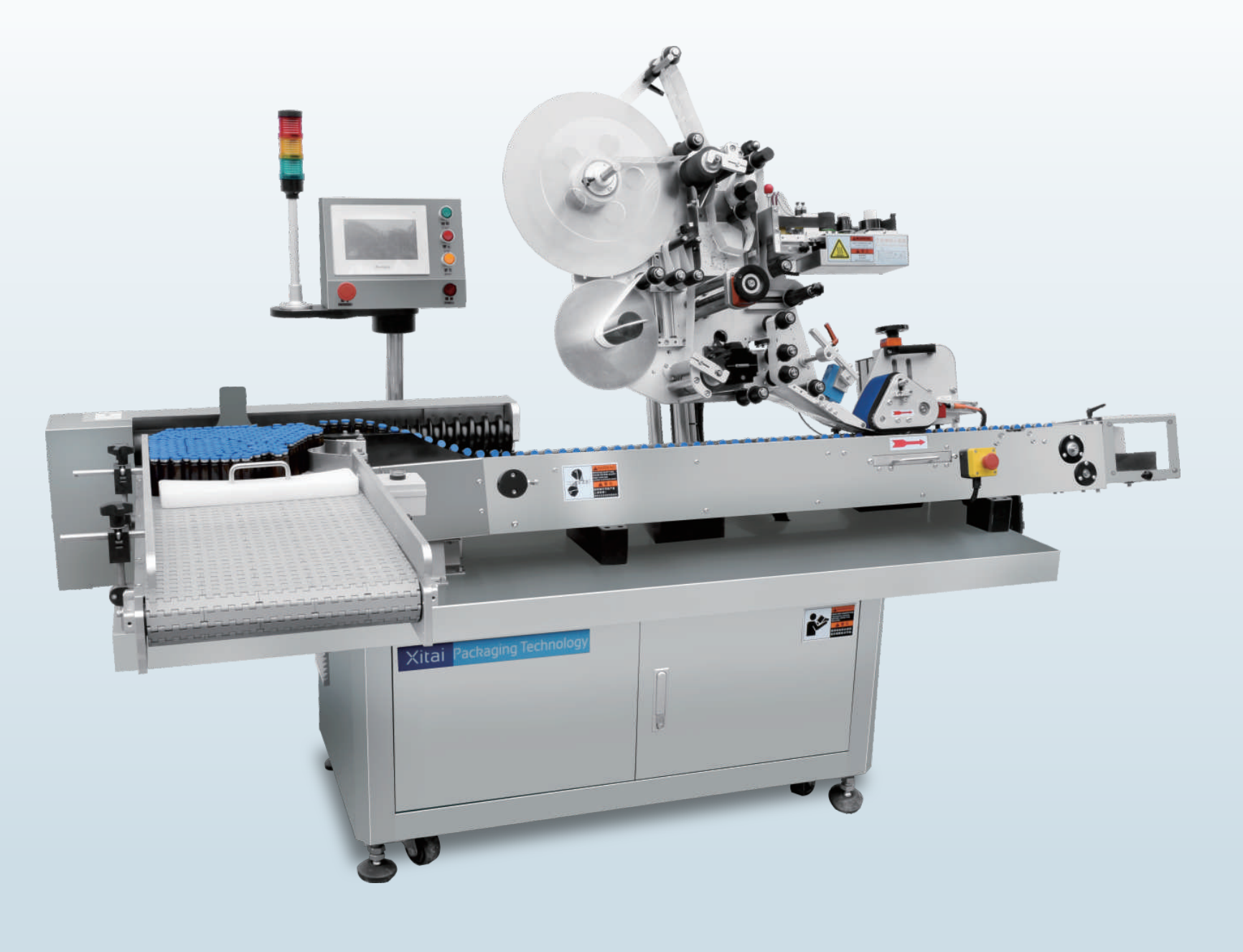

CL8060High Speed Horizontal Labeling Machine

Basic process
Horizontal feeding→auger bottle separator→batch number printing→horizontal labeling→detection & rejection→finished product collection→next procedure

Equipment Introduction
1.Customized vertical-to horizontal bottle converter, make sure bottles are feed stable and high speed. Large buffering area, easy adjust speed, convenient to integrate in an automatic packing line.
2.To make sure high speed and accuracy labeling, we use three steps labeling feeding strucutre: individual motor for label roll pulling, lable releasing and back paper collection. Consistant tension on label releasing part. No label break.
3.Touch screen HMI, easy for operation. With multi recipe memory and call-out function for different bottle sizes.
4.Bottle converter auger and horizontal conveyor are driven by one motor. All movement matches perfect. Rapid reaction to start and stop. High speed and stablility, no empty feeding or getting struck.
5.Wheel type label rolling parts will press label evenly on bottle body, to stick labels more firmly. Synchronous positioning system make sure label error is less than 0.5mm
6.Multi emergency stop button to ensure safety production.
7.Option: horizontal-to-vertical convertor to make bottles come out vertical.
8.Option: automatic tray loading for automatic packaging.

Equipment parameter
