Process Flow
Single-unit labeling:
Automatic feeding or manual loading → Online printing → Servo-based labeling → Online inspection and rejection (optional) → Final product → Next process step
Functional Characteristics

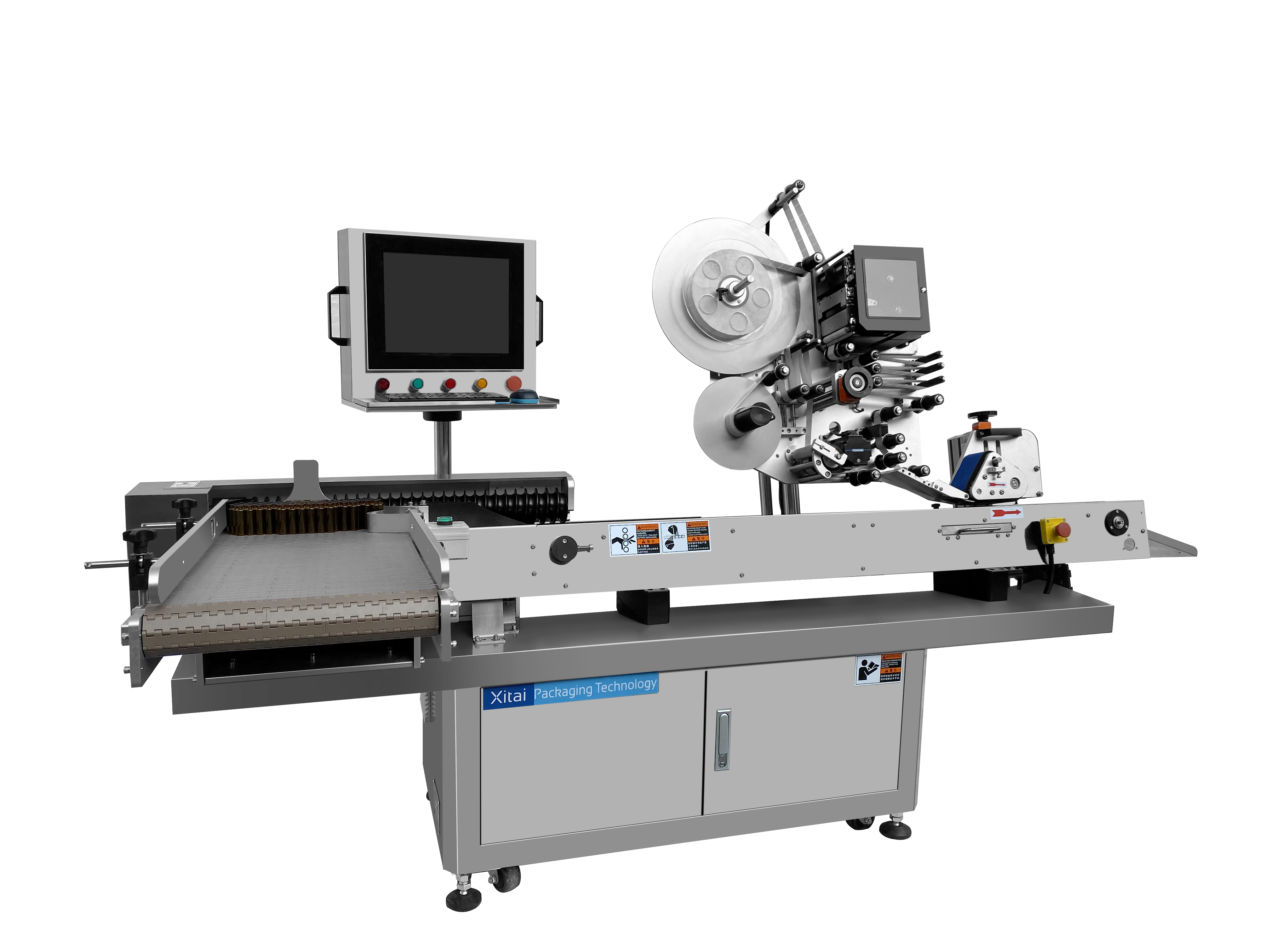

1.This device is suitable for various small round bottles made of materials such as glass, plastic, and metal (e.g., oral liquid bottles, ampoules, vials, etc.).
2.It can be equipped with a vibrating tray for automatic feeding, making operation convenient.
3.Single bottle per workstation; no bottle squeezing or breaking occurs.
4.The labeling unit features a three-stage independent system comprising label feeding, labeling, and substrate paper recycling, effortlessly performing labeling and batch number printing with high-speed, stable, and precise operation.There will be no bid discontinuation.
5.Dual-mode label applicator: supports online instant printing and standalone servo labeling.
6.The wheel-mounted label roller mechanism fully presses the bottle body, ensuring more secure label attachment.
7.A touch-based human-machine interface operating system with simple and convenient operation.The interface displays real-time operational parameters of the entire unit, features multiple memory storage options, instantly shows fault causes and troubleshooting methods when abnormalities occur, and provides counts for both qualified and defective products.
8.The tag separation distance is automatically calculated by a photoelectric sensor and servo motor in conjunction with a PLC, eliminating the need to adjust the sensor position. Any tag length can be modified directly on the human-machine interface for convenient operation.
9.The system features configurable configurations for missing print detection, CCD image-based clarity inspection of printed text, UV inspection and rejection of mislabeled items, enabling real-time, accurate product quality monitoring.
10.The machine is primarily constructed from SUS304 stainless steel, T6061 high-strength aluminum alloy, and imported POM material, ensuring exceptional durability and rust resistance.
11.The machine features continuous speed regulation, allowing users to adjust labeling speed instantly based on production requirements without modifying the photoelectric components.
Plant Parameter
机器尺寸： | 3500mm（L）*1200（W）*1600（H）（供参考） |
电压规格： | AC220V 50/60HZ 单相 |
系统功率： | 3KW |
贴标速度： | 在线打印贴标：60-150支/分钟（视上料速度及打印速度而定） |
| 不打印高速贴标：300-500支/分钟 |
打印速度: | 即时打印：60-150张/分钟（与打印信息量关联） |
贴标精度： | ±0.5mm |
贴标合格率： | ≥ 99.99% |
气压强度： | 5kg-7kg/cm2（有剔废或气动打印机时需要） |
出标精度： | 0.2mm |
进出料方向： | 左进→右出/右进→左出（生产时确认） |
适用容器范围: | 直径12-30mm高度25-110mm（特殊尺寸亦可接受非标制作） |
适用标签范围: | 高度15-80mm,长度25-95mm（特殊尺寸亦可接受非标制作） |
输送带高度： | 850±50mm（特殊尺寸亦可接受非标制作） |
